CARTONING

AUTOMATIC CARTONER

1 / 3

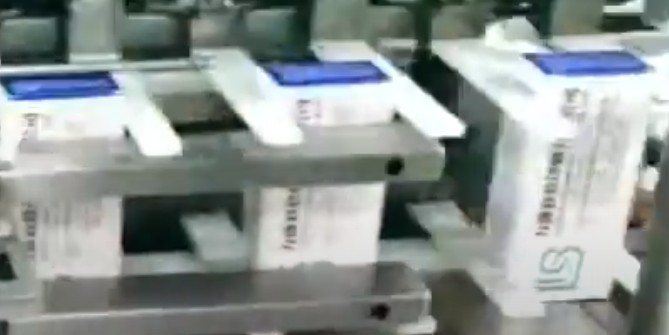

Cartoning Machine - Insert Products Vertically
Video Specs

CARTONING MACHINE VERTICAL 120 BPM

Model No.CVC120
A cost effective choice of cartoning machine. It's driven by one motor to coordinate all mechanisms. Easy maneuver; low maintenance. Various optional accessories available.
SPECIFICATIONS
SPEED Max. 120 BPM
BOX SIZE 50~200 (L) x 30~100 (W) x 25~80 (H) (m/m)
AIR PRESSURE 5 (Kg/cm²)
POWER SUPPLY 3Ø 220V 50/60HZ 1.5KW
MACHINE SIZE 4010 (L) x 2020 (W) x 1825 (H) (m/m)
2 / 3
Cartoner for Blister Packs
Video Specs

CARTONING MACHINE FOR BLISTER PACKS

Model No.CHS120
With intermittent structure, it's built with 3-axis servo control system with easy set up and maintenance. Average speed 60 BPM.
SPECIFICATIONS
SPEED 60 BPM
BOX SIZE 70~180 (L) x 60~120 (W) x 30~100 (H) (m/m)
AIR PRESSURE 5 (Kg/cm²)
POWER SUPPLY 3Ø 220V 50/60HZ 5.5KW
MACHINE SIZE 2800 (L) x 1050 (W) x 1725 (H) (m/m)
3 / 3
High Speed Cartoner 300 BPM
Video Specs

Cartoner Super High Speed (Horizontally insert contents)

Model No.CHC120
A cartoner that's driven by one motor for all mechanisms. It is designed to enhance PTP production to reach speed up to 300 box per minute.
SPECIFICATIONS
SPEED Max. 300 BPM
BOX SIZE 35 ~ 100 (L) x 20 ~ 80 (W) x 20~80 (H) (m/m)
AIR PRESSURE 5 (Kg/cm²)
POWER SUPPLY 3Ø 220V 50/60HZ 5.5KW
MACHINE SIZE 4420 (L) x 1530 (W) x 1510 (H) (m/m)
