FILLING - BOTTLES/JARS/CONTAINERS

Affordable Automation Made Easy

1 / 9

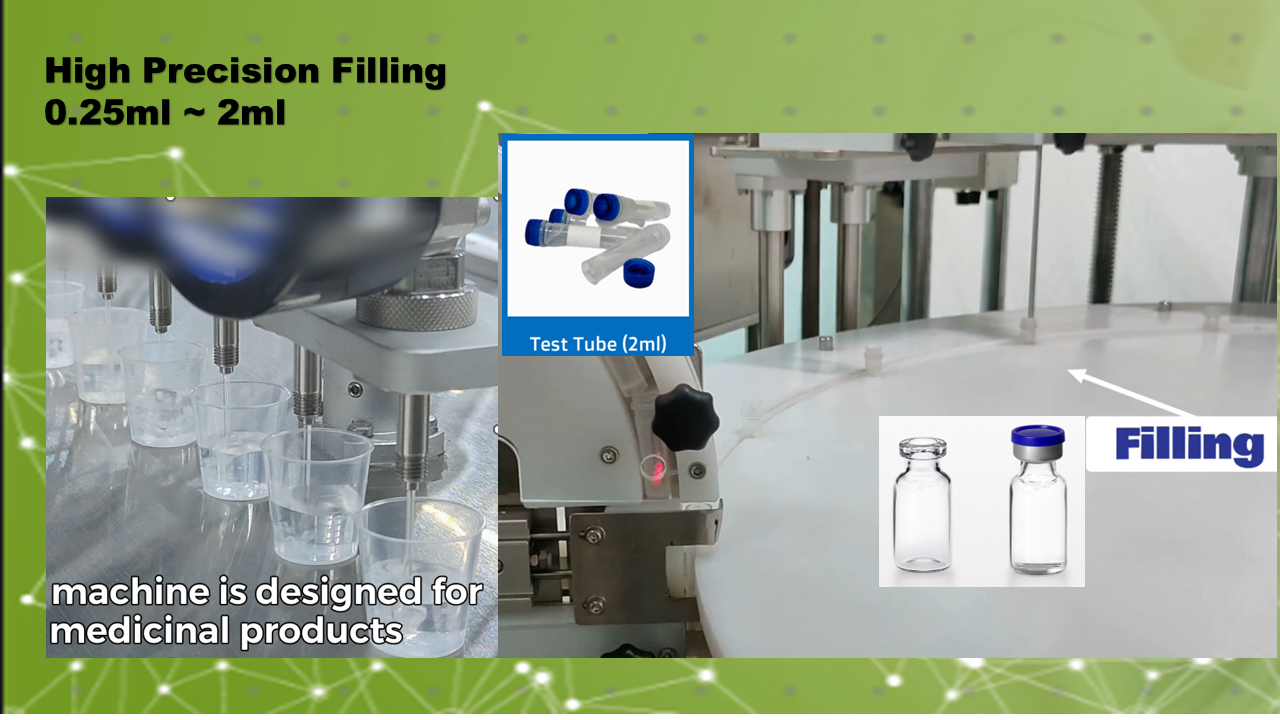

Tiny Dosage Filling
Video Specs

Fill 0.25ML ~ 2ml

Model No.FILL TINY VOLUME
2 / 9
Specs

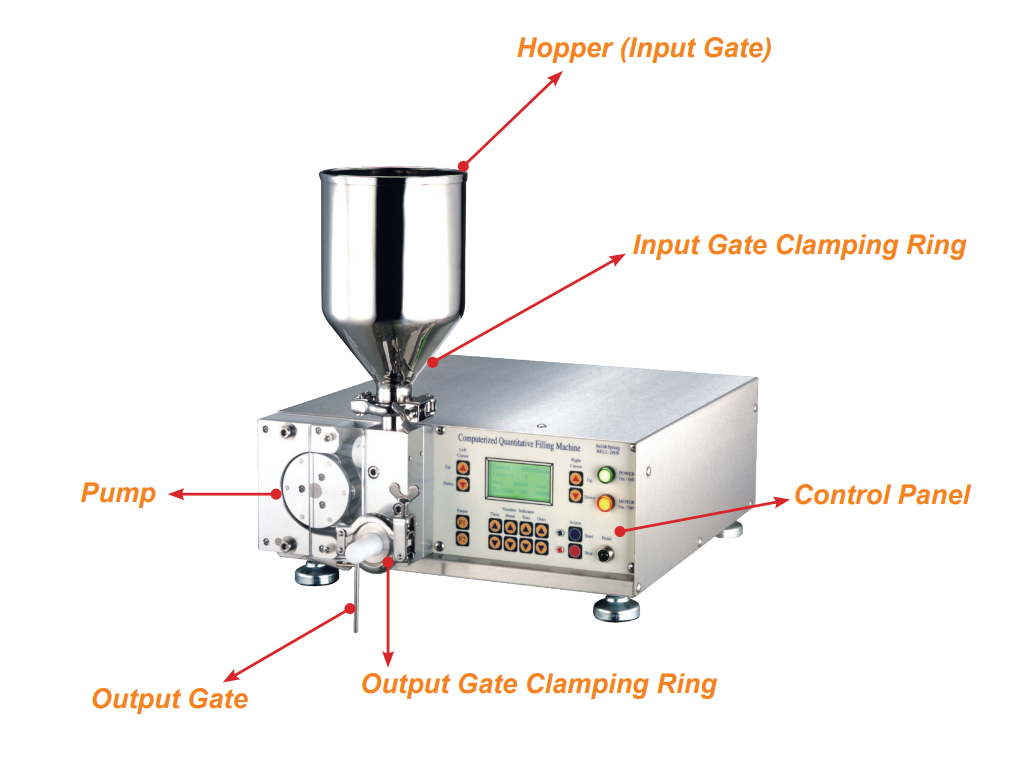

Precision Filler - Peristaltic Pump (3ml ~ 999ml)

Model No.BELLSPRING 3000
SPECIFICATIONS

Technical Capabilities:
* Filling capacity ranges from 3 ml up to 100,000 ml per fill
* Capable of handling liquid/viscid (non-hazardous only)
  materials with viscosity from 0 up to 100,000 cps (Note 2)
* Filling speed ranges from 3 ml up to 60 ml per second
* Materials are metered precisely by computerized control
  system, digitalized setting of parameters, LCD display, and AC
  servomotor (Note 3)
* Patent non-piston filling operation ensures zero percent
  material transformation/contamination during process
* Patent “Suck-Back” function ensures “no dripping” while
  filling various types of material.
* Able to transmit materials of liquid/viscid form at room
  temperatures or warmer (Note 4)
* Medical/food grade Transmission Tube guarantees
  contamination-free transmission.
* Top grade industrial stainless steel (no. 316) is utilized for all
  major parts and accessories.

3 / 9
Picture of inline visually consistent filling
Video Specs Features Options

Filling System for Visually Consistent Filled Level

Model No.BELL_F3_STAR
Inline Filling System That Gives Visually Consistent Filled Level.
4 / 9
Time Gravity Filling System and Capping w/ Cap Feeder
Video Specs Features Options

Filling Time Gravity 8 Nozzles for Yogurt in Glass Jars

Model No.BELL FTG8
Time Gravity Filling system with 8 Nozzles to fill yogurt in jars, 30 BPM. Quality choice for filling food items. All parts in contact are made of SUS316. User friendly PLC/HMI control with color touchscreen.
SPECIFICATIONS
Product Type Flowing Liquids
Temperature at Filling 50 ~ 140 Fahrenheit **
Filling Speed 20 ~ 30 BPM **
Filling Range 50 ~ 1000 ml ***
Accuracy +/- 1%
Air Compressor Requirement 90 pwi
Power Supply Single Phase 110 or 220 VAC, 50/60 Hz
Machine Size L x W x H 2500 x 1600 x 1900 mm
Machine Weight 550 kg
** Subj to Product Types & Sizes
*** Customizable
+ Transparent Subj to Different Sensor Charge
++ Non Standard Sizes Subj to Additional Charge
5 / 9
Click to view machine in operation.
Video Specs Features Options

Filling - Overflow 10 Nozzles

Model No.FL4550
A precision filler offers a fill-to-a-visually-consistent-level filling. Good for liquids with light to medium viscosity or foamy and packaged in transparent containers.
SPECIFICATIONS
Product Type Flowing Liquids **
Temperature at Filling 50 ~ 140 Fahrenheit **
Filling Speed 20 ~ 40 BPM **
Filling Range 50 ~ 5000 ml ***
Accuracy +/- 1%
Air Compressor Requirement N/A
Power Supply Single Phase 110 or 220 VAC, 50/60 Hz
Machine Size L x W x H 2295 x 1600 x 2250 mm ***
Machine Weight 1500 kg ***
** Subj to Product Types & Sizes
*** Customizable
+ Transparent Subj to Different Sensor Charge
++ Non Standard Sizes Subj to Additional Charge
6 / 9
Click to view machine in operation.
Video Specs Features

Filling - Time Gravity Filler 6 Nozzles

Model No.FF4350
Its mechanism minimizes the contact between filled material and filling gears. It is especially safe for filling food and drink items.
SPECIFICATIONS
Product Type Flowing Liquids
Temperature at Filling 50 ~ 140 Fahrenheit **
Filling Speed 20 ~ 30 BPM **
Filling Range 50 ~ 5000 ml ***
Accuracy +/- 1%
Air Compressor Requirement 90 psi
Power Supply Single Phase 110 or 220 VAC, 50/60 Hz
Machine Size L x W x H 2500 x 1600 x 1900 mm
Machine Weight 550 kg
** Subj to Product Types & Sizes
*** Customizable
+ Transparent Subj to Different Sensor Charge
++ Non Standard Sizes Subj to Additional Charge
7 / 9
Pic of Vertical Piston Pump
Video Specs Features

Pneumatic Vertical Piston Filler

Model No.FP2000
This vertical filler offers flexibility to handle a variety of non-viscous or viscous liquids. Its piston pump comes with a quick release design for extremely easy maneuver.
SPECIFICATIONS
Product Type Liquid to Viscous
Temperature at Filling Room
Filling Speed 30 ~ 150ml per second
Filling Range 100 ~ 1000ml
Accuracy +/- 1%
Air Compressor Requirement 6kgf/cm2
Machine Size (L) 350mm (W) 350mm (H) 1700mm
** Subj to Product Types & Sizes
*** Customizable
+ Transparent Subj to Different Sensor Charge
++ Non Standard Sizes Subj to Additional Charge
8 / 9
6 Nozzles Piston Pump Filler
Video Specs Features Options

Filling: Piston 6 Nozzles

Model No.FP4350 + Labeling First
Flexible gating design steadily handles round or square bottles' filling. Programmable settings w/ color touchscreen. Minimal efforts of cleaning and changing. (A different order: Labeling first then filling.)
SPECIFICATIONS
Product Type Mild to Thick Liquid *
Temperature at Filling Room
Filling Speed Up to 250ml/sec **
Filling Range 50 ~ 4000 ml
Accuracy +/-0.5~1%
Air Compressor Requirement 90 PSI
Power Supply 110VAC OR 220VAC, Single Phase
Machine Size L2800 x W1500 x H2400 mm
Machine Weight 550 kg
** Subj to Product Types & Sizes
*** Customizable
+ Transparent Subj to Different Sensor Charge
++ Non Standard Sizes Subj to Additional Charge
9 / 9
8 Nozzles Gear Pump Filler
Video Specs Features Options

Filler Gear Pump 8 Nozzles

Model No.FG5470 + HMI/PLC + Safety House + Servo
This gear pump filler was designed to fill lubricant oil in volume 1~5 liter. Its servo motor, PLC/HMI system greatly enhances its precision and speed. Each nozzle can be adjusted to fill different volume.
SPECIFICATIONS
Product Type Mild to Thick Liquid *
Temperature at Filling Room
Filling Speed 20~40 BPM (250~50ml/sec) **
Filling Range 50 ~ 4000 ml
Accuracy +/-0.5~1%
Air Compressor Requirement 90 PSI
Power Supply 110VAC OR 220VAC, Single Phase
Machine Size L5125 x W1528 x H2398 mm
Machine Weight 650 kg
** Subj to Product Types & Sizes
*** Customizable
+ Transparent Subj to Different Sensor Charge
++ Non Standard Sizes Subj to Additional Charge
