161 / 190
● MACHINE ●
Rinsing Machine by Air or Water 30 ~ 60 BPM
Model No.BW5400
It can rinse for a variety of bottles, by air, nitrogen, water, or special chemical solution. Heavy duty and low maintenance.
| Speed | 30 ~ 60 BPM |
| Container Material | Glass, Plastic |
| Bottle Diameter | 69~101mm |
| Neck Opening | Subject to Testing |
| Contain Total Height | No higher than 80mm |
| Power Supply | 110/220VAC, 50/60Hz, 1P |
| Machine Size | (L) 4696mm x (W) 1392mm x (H) 1958mm |
| Machine Weight | n/a |
* Subj to Testing ** Subj to Product Types & Sizes *** Customizable + Transparent Subj to Different Sensor Charge ++ Non Standard Sizes Subj to Additional Charge +++ Subj to Extra Parts | |
162 / 190
● MACHINE ●
Labeling: Double Labels on One Side & Gripper Conveyor to Allow Bottom Coding (Large Label Size)
Model No.LD3000
It's a side labeling system design to give smooth application, precise timing, and perfectly centered position for large sized labels. It connects with a gripper conveyor to allow for easy bottom coding.
| Speed | 20 ~ 40 BPM ** |
| Bottle Size ++ | Dia.15~90 mm/ Height 30~160 mm |
| Label Type + | Non Transparent |
| Label Size ++ | H 10~100mm W 20~300mm |
| Label Reel | ID 75 / OD < 300 mm |
| Accuracy | +/- 1% |
| Power Supply | 10VAC or 220VAC, Single Phase |
| Machine Size | L1800 x W1540 x H1824 mm |
| Machine Weight | 100 kg |
* Subj to Testing ** Subj to Product Types & Sizes *** Customizable + Transparent Subj to Different Sensor Charge ++ Non Standard Sizes Subj to Additional Charge | |
163 / 190
● MACHINE ●
Filling - Overflow 10 Nozzles
Model No.FL4550
A precision filler offers a fill-to-a-visually-consistent-level filling. Good for liquids with light to medium viscosity or foamy and packaged in transparent containers.
| Product Type | Flowing Liquids ** |
| Temperature at Filling | 50 ~ 140 Fahrenheit ** |
| Filling Speed | 20 ~ 40 BPM ** |
| Filling Range | 50 ~ 5000 ml *** |
| Accuracy | +/- 1% |
| Air Compressor Requirement | N/A |
| Power Supply | Single Phase 110 or 220 VAC, 50/60 Hz |
| Machine Size | L x W x H 2295 x 1600 x 2250 mm *** |
| Machine Weight | 1500 kg *** |
** Subj to Product Types & Sizes *** Customizable + Transparent Subj to Different Sensor Charge ++ Non Standard Sizes Subj to Additional Charge | |
164 / 190
● MACHINE ●
Filling - Time Gravity Filler 6 Nozzles
Model No.FF4350
Its mechanism minimizes the contact between filled material and filling gears. It is especially safe for filling food and drink items.
| Product Type | Flowing Liquids |
| Temperature at Filling | 50 ~ 140 Fahrenheit ** |
| Filling Speed | 20 ~ 30 BPM ** |
| Filling Range | 50 ~ 5000 ml *** |
| Accuracy | +/- 1% |
| Air Compressor Requirement | 90 psi |
| Power Supply | Single Phase 110 or 220 VAC, 50/60 Hz |
| Machine Size | L x W x H 2500 x 1600 x 1900 mm |
| Machine Weight | 550 kg |
** Subj to Product Types & Sizes *** Customizable + Transparent Subj to Different Sensor Charge ++ Non Standard Sizes Subj to Additional Charge | |
165 / 190
● MACHINE ●
Capping: Deep-Well Pick & Place for Inner & Outer Caps
Model No.CC5000 + Cap Feeder (Inner & Outer Caps)
This is a capping system that combines speed and precision in feeding and press-capping the inner caps, and feeding and screw-capping the outer caps.
| Speed | 25 ~ 30 BPM * |
| Cap Type | Plastic, Aluminum, Others ** |
| CAP DIAMETER OUTER | 20 ~ 110mm |
| BOTTLE HEIGHT | 60 ~ 90 psi |
| AIR COMPRESSOR | 110 or 220 VAC; 50/60 Hz; single phase |
| POWER SUPPLY | (L)2480mm(W)1540mm(H)2586mm |
| MACHINE SIZE LxWxH | 950 kg |
* Subj to Testing ** Subj to Product Types & Sizes *** Customizable + Transparent Subj to Different Sensor Charge ++ Non Standard Sizes Subj to Additional Charge +++ Subj to Extra Parts | |
166 / 190
167 / 190
● MACHINE ●
Bottle Unscrambler / Bottle Sorting Machine
Model No.BU5000
It continuously receives bottles in bulk, orients, and positions them onto a conveyor for further processing. 60~350 BPM with adjustable speed.
Speed: 120BPM* ** ***
|
168 / 190
● MACHINE ●

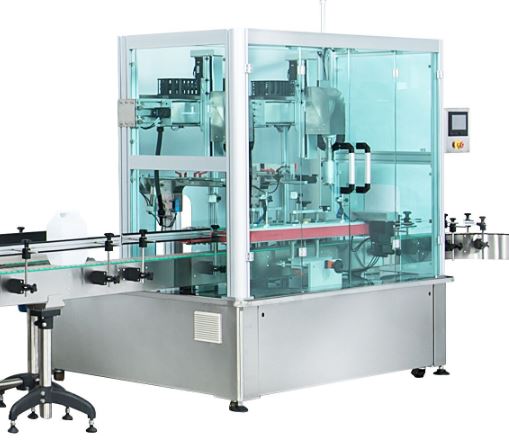

Capping: HIgh Speed Press On (Torque Control Available)
Model No.CP5170 + High Speed & Safety Housing
With a customized cap-feeder, this capper tightens caps according to the torque level you want.
| Speed | 80 ~ 120 CPM ** |
| Cap Type | Various *** |
| CAP DIAMETER OUTER | Various *** |
| BOTTLE HEIGHT | 90 ~ 150 psi |
| AIR COMPRESSOR | 110VAC or 220VAC, Single Phase |
| POWER SUPPLY | L3050 x W2875 x H2400 mm |
| MACHINE SIZE LxWxH | 500 kg +++ |
* Subj to Testing ** Subj to Product Types & Sizes *** Customizable + Transparent Subj to Different Sensor Charge ++ Non Standard Sizes Subj to Additional Charge +++ Subj to Extra Parts | |
169 / 190
● MACHINE ●
Induction Sealing
Model No.IS4000
A non-contact heating process secures a hermetic sealing of a closure with heat-sealable foil laminate. Temperature adjustable.
| Speed | 30 ~ 120 BPM |
| Cap Type | Non Metal |
| Cap Outside Diameter: | 10 ~ 120mm |
| Power Supply | 110VAC or 220VAC |
| Machine Size | L1600 x W750 x H2160 mm |
* Subj to Testing ** Subj to Product Types & Sizes *** Customizable + Transparent Subj to Different Sensor Charge ++ Non Standard Sizes Subj to Additional Charge +++ Subj to Extra Parts | |
170 / 190
● MACHINE ●
Induction Sealing
Model No.IS2000W
A non-contact heating process secures a hermetic sealing of a closure with heat-sealable foil laminate. Temperature adjustable.
| Speed | 30 ~ 120 BPM |
| Cap Type | Non Metal |
| Cap Outside Diameter: | 10 ~ 120mm |
| Power Supply | 110VAC or 220VAC |
| Machine Size | L650 x W746 x H1560 mm |
* Subj to Testing ** Subj to Product Types & Sizes *** Customizable + Transparent Subj to Different Sensor Charge ++ Non Standard Sizes Subj to Additional Charge +++ Subj to Extra Parts | |
